Lead-Acid Battery Manufacturing Solutions
The lead-acid battery market is expected to grow by more than $1B over the next 5 years. Now is the time for battery businesses to invest in high-quality manufacturing equipment that can meet the demand for high-quality batteries. That’s where we come in.

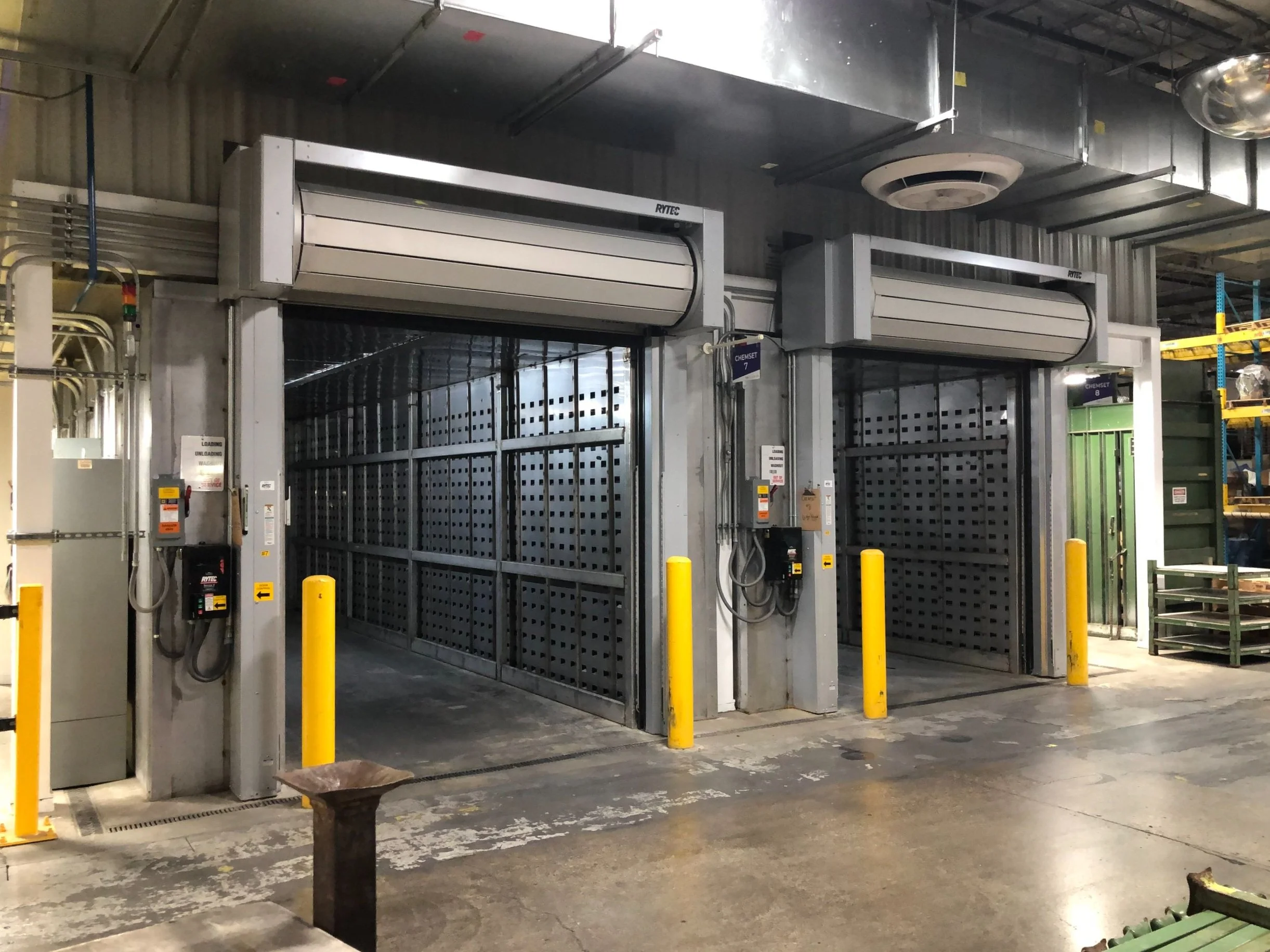

Curing & Drying Chambers (Batch or Continuous)
Every custom-built curing & drying chamber from American Battery Machines is made in the USA to meet specifications and exceed all expectations. With gas, electric, and steam-powered options—as well as a reversing airflow option for side-to-side recirculation—ABM curing & drying chambers allow for total control of every environment and outcome.
Enveloping / Wrapping & Stacking Machines
BM-Rosendahl’s enveloping/wrapping & stacking machines feature compact, modular designs—the most efficient of which can process up to 340 enveloped plates per minute.
Battery Types:
SLI (Starting, Lighting & Ignition)
VRLA (Valve-Regulated Lead-Acid)
EFB (Enhanced Flooded Battery)
Element Options:
Single-Fold AGM
Double-Fold AGM
Polyethylene (PE)
Laminated PE & GM
Leaf-Type Separators
Element Buffer Systems (Vertical or Robotic)
BM’s element buffer systems enable manufacturers to save floor space, optimize loading, and increase the productivity of cast-on-strap machines. No adjustments are required for different plate and element dimensions.
Battery Types:
SLI (Starting, Lighting & Ignition)
VRLA (Valve-Regulated Lead-Acid)
EFB (Enhanced Flooded Battery)
Element Options:
Single-Fold AGM
Double-Fold AGM
Polyethylene (PE)
Laminated PE & GM
Leaf-Type Separators
Cast-On-Strap Machines
With BM’s RoCOS-X1, you get the fastest single-mold cast-on-strap machine in the world—processing up to 4.5 batteries/min with PE and 4 batteries/min with AGM.
Battery Types:
SLI (Starting, Lighting & Ignition)
VRLA (Valve-Regulated Lead-Acid)
EFB (Enhanced Flooded Battery)
Element Options:
Single-Fold AGM
Double-Fold AGM
Polyethylene (PE)
Laminated PE & GM
Leaf-Type Separators
Automatic Lead-Acid Battery Assembly Lines
Automatic assembly lines for lead-acid battery production are essential for consistent and reliable battery quality. BM’s equipment can assemble up to 6 batteries/min and be adjusted to different battery types, even while in use.
Assembly Process:
Short-Circuit Testing I
Intercell/Partition Welding
Short-Circuit Testing II
Automatic Lid Placing
Lid-to-Box Heat Sealing
Final Post/Pole Burning
Air-Leakage Testing
Battery Code Marking
Acid Mixers & Diluters (Batch or Continuous)
Källström’s fully-automatic acid-mixing & diluting systems work for any acid density you need with compact designs that include all necessary parts—valves, pumps, piping, PLCs (Allen-Bradley or Siemens), and heat exchangers.
Key Features:
Capacities up to 6 m³/h
Accuracy down to ±0.002 g/cm³
Fully-automatic, 24/7 operation
Källström also offers equipment for powder mixing and dosing—as well as gel mixing.
Acid Fillers
Källström acid-filling machines are tailor-made and custom-built for each customer’s needs.
Volumetric Acid Fillers for SLI Batteries
Källström’s volumetric acid fillers come equipped with 1 to 6 filling heads, can handle any battery cell voltage between 2 and 36 volts, can fill up to 25 batteries/minute, and can process up to 3 different acid densities on a single machine with Kallstrom’s unique tank add-on.
Vacuum Acid Fillers for VRLA Batteries
Källström’s vacuum acid fillers feature state-of-the-art Coriolis flow meters to ensure dosage accuracy while providing density and temperature readings in real-time. These systems enable you to minimize dry-spots while filling 2, 6, 8, 12, and 24 volt batteries. They can also fill up to 4 batteries/min with a fill accuracy of ±3 g/cell.
Källström also offers similar acid-filling systems for NiCd and NiMH batteries.
